E-scooter Battery Charger
360W battery charger
Model No.: SD-360W
Size : 180*90*63cm
Net Weight : 1.2 kg
Housing: Black or sliver aluminium case
Efficiency : ≥ 87% ( full loading )
Input Voltage : 100VAC ~ 240 VAC , 50 HZ / 60HZ
DC output :12v 75ah 15amp
Charging mode : 2 stage cc cv floating charging for lipo / lifepo4 batteries
Application : li po / lifepo4 batteries 12v
Input plug : EU, US , UK , AU , Italy plug etc ( as your requirement )
Output plug : DC Jack , XLR , JST , Cigar Lighter , Alligator clip etc

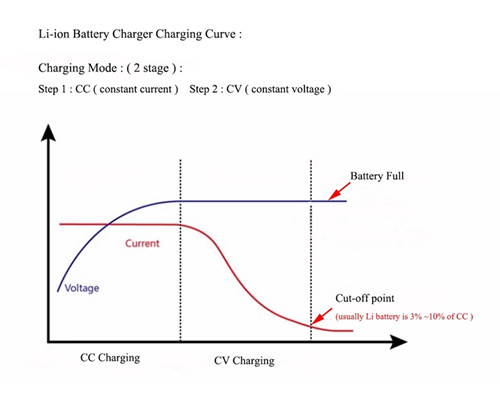

Charging curve
SD-360W battery charger Specification :
|
SD-360W Battery Charger Parameter |
||||||||||
|
Input voltage : 100VAC~ 240VAC 50HZ/60HZ |
CC |
CV |
Transition / Cut-off Current |
Net Weight |
Size |
Package |
||||
|
Item No. |
Input voltage |
Lead Acid |
Li-MnO2 |
LiFePO4 |
A |
Lead Acid (A) |
Li(A) |
(kg) |
(mm) |
( pcs/ctn ) |
|
SD-360W |
12V |
14.7V |
16.8V |
14.6V |
20A |
4.0 |
1.0 |
1.2 |
180*90*63 |
12pcs/ctn |
|
18A |
3.6 |
0.9 |
||||||||
|
15A |
3 |
0.75 |
||||||||
|
24V |
29.4V |
29.4V |
29.2V |
8A |
1.6 |
0.4 |
||||
|
10A |
2.0 |
0.5 |
||||||||
|
12A |
2.4 |
0.6 |
||||||||
|
36V |
44.1V |
42.0V |
43.8V |
6A |
1.2 |
0.3 |
||||
|
7A |
1.4 |
0.35 |
||||||||
|
8A |
1.6 |
0.4 |
||||||||
|
48V |
58.8V |
54.8V |
58.4V |
5A |
0.8 |
0.2 |
||||
|
6A |
1.2 |
0.3 |
||||||||
|
60V |
73.5V |
67.2V |
73.0V |
4A |
0.8 |
0.2 |
||||
|
5A |
1.0 |
0.25 |
||||||||
|
72V |
88.2V |
84.0V |
87.6V |
3A |
0.6 |
0.15 |
||||
|
4A |
0.8 |
0.2 |
||||||||
|
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%. |
||||||||||
=
Our Advantage :
1. Full automatic transition of cc cv and floating / cut-off , Precise limit of voltage & current
2. High efficiency ≥ 90% , high performance , stable and durable
3. Using 2 stage charging mode : cc-cv charging more intelligent and safety, High saturation and lower calorie.
4. two led indiation show charging situation ( led 1 red mean power on / charging , Led 2 green mean full charged )
5. All products passed CE & Rohs certificiation
6. Factory wholesle price , 10 years factory production experience in battery charger industry.
7. multi-protection function : protection for short circuit , over voltage, over-temperature, Reverse polarity protections ( Dc output isolated from AC input ) without any damage to the battery,Can enhance batteries lives
8. Aluminium black and silver housing, light weight portable and reliable
